| Construction Material | Engineering Plastic |
| Body Trajectory Angle | 27 Degrees |
|
Connection |
1/2" Male Pipe Connection |
| Working Pressure | 1.5 - 3.0 Kg/Cm2 |
| Nominal Flow Rate | 0.45 - 1.38m3/h (7.5 - 23.0 lpm) |
| Co-efficient Distribution Uniformly | 82% to 95%(CDU) |

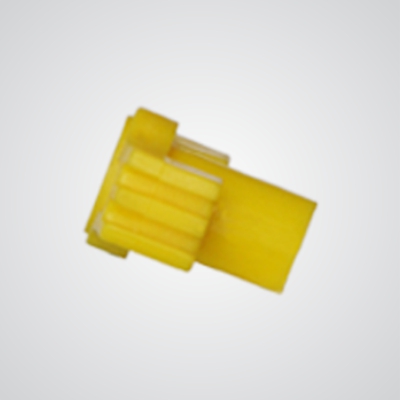

| Equivalent Nozzle | 2.5 to 4.0 mm |

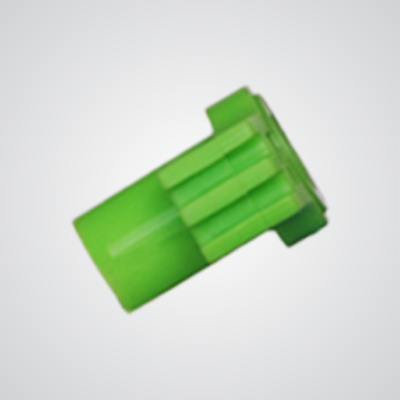

| Spread Nozzle | 1.8mm & 2.5 mm |
| Diameter of coverage | 20 to 26 Mts. |
| Maximum Spacing | 14 Mts. |
• Light Wieght, Compact and robust design
• Plastic Construction with minimum Metal Parts

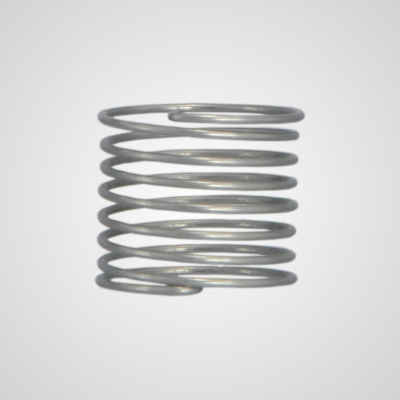

• Stainless Steel retraction spring maintains uniform rotation speed.
• Better C.D.U. (Uniform Water Distribution)
• Integrated stream straightening vane for maximum coverage range.

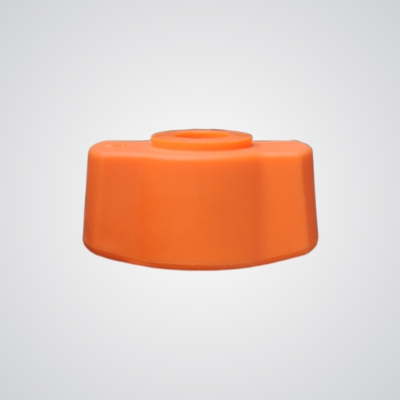

• Optional Sand Protection cover to protect the spring from sand.
• High impact engineering plastic provide resistance to corrosion,chemicals and UV radiation.
1.00
2.00
8.70
2.50
6.00
0.65
0.65
1.00
1.00
1.00
2.50
1.10
1.00
2.00
1.00
1.00
